Ruuvi Gateway
Estimated delivery time: beginning of November 2021

Ruuvi Gateway

Estimated delivery time: beginning of November 2021

199,00

Tax excl.Tax 24% | 0%

Ruuvi is based in Finland. If you’re an EU consumer, 24% VAT is included. If you’re a non-EU customer, you don't pay VAT. If you’re an EU business, insert your VAT ID at checkout.

Order now:

Total: 199,00 + shipping

Shipping

Add more for free shipping!

View shipping options

With Ruuvi Gateway, you can read your Ruuvi sensors from anywhere in the world. Connect your Gateway to the Internet via Wi-Fi (WLAN) or Ethernet, and you won’t ever again need to worry about being out of Bluetooth range. Ruuvi Gateway is fully compatible with all Ruuvi sensors, old and new.

Package includes: Ruuvi Gateway, cloverleaf antenna, Ethernet cable, power supply (Europlug), power cord, mounting screws.

Estimated delivery date for new orders: Beginning of November, 2021. First in, first out.

Technical Specifications
Ethernet
10/100 Mbit/s (PoE available with a separate dongle)
Wi-Fi (WLAN)
2,4 GHz (no other bands supported)
Main processor
Espressif Systems ESP32
Bluetooth receiver
Nordic Semiconductor nRF52811
Flash memory
128 Mbit
Operating temperature
-20 ºC to +70 ºC (contact us for a special wide temperature version)
Power source
USB-C (Europlug power adapter and power cable included)
Diameter
114 mm
Weight
150 g
Antenna
SMA female connector (cloverleaf antenna included)
Enclosure material
Polycarbonate (same as on RuuviTag)
Mounting
Generic screws (included)

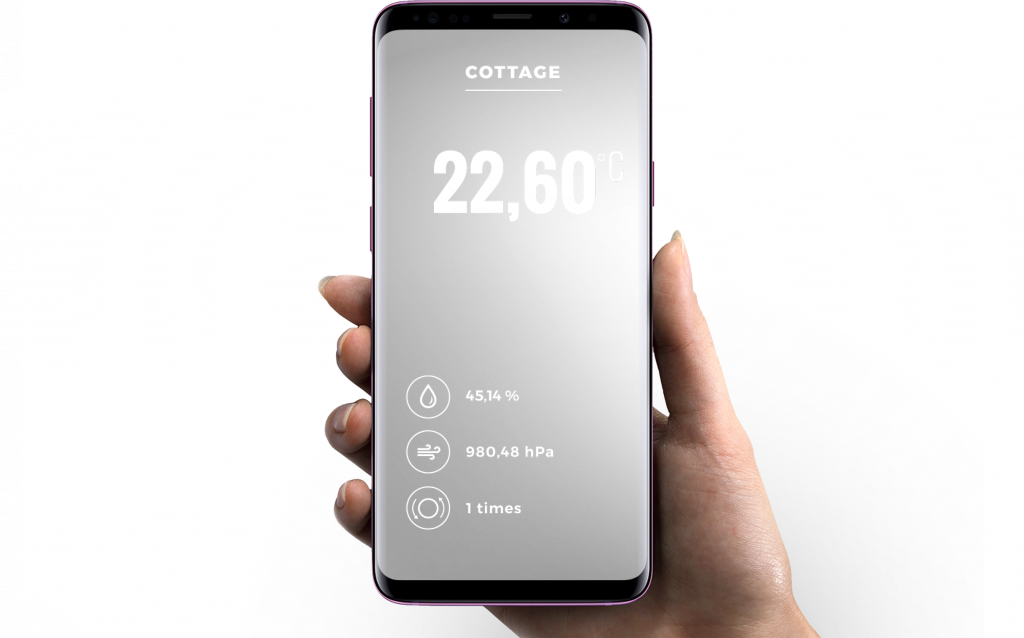

Temperature monitoring on summer cottage

Unlimited
Access

Read your sensors from anywhere in the world.

Unlimited access to Ruuvi Sensors with Ruuvi Gateway
Receive temperature alerts

Worry-Free
Remote
Alerts

Always get notified of unwanted condition changes.

Ruuvi Gateway alerts

Longer
Range

Ruuvi Gateway offers much better Bluetooth range compared to ordinary smartphones.

Ruuvi Gateway Range

Share With
Friends

With help of the new Ruuvi cloud, also friends and family can access your sensors.

Sensor sharing with Ruuvi Gateway

All-New
Web Dashboard

Explore longer and more detailed history

Ruuvi Web Dashboard shown on different devices

To unleash the full power of Ruuvi sensors and Gateway, we’ve created a completely new web dashboard that complements the Ruuvi Station mobile app.

On the web dashboard you can monitor all your sensors in real time, analyse their full history and modify Ruuvi Station alerting settings.

Step 1

Log in on Ruuvi Station mobile app and claim ownership of your Ruuvi sensors.

Step 2

Connect Ruuvi Gateway to the Internet and it automatically starts to route data of its nearby sensors to the cloud.

That's it!

Your remote monitoring system has been set up and you can enjoy all the features.

If you're an advanced or business user, you can also use your own HTTP/MQTT server. Endless possibilities.

Easy and flexible

Ruuvi Gateway is designed to serve both individual consumers and businesses. While it works straight out of the box with Ruuvi applications, it can also suit the needs of demanding business users.

  • EASY START

    No complicated configuration. Plug & play.

  • WORKS WITH ALL RUUVI SENSORS

    Compatible with old and new Ruuvi sensors.

  • SUPERIOR ANTENNA

    Enhanced Bluetooth reception gives a better range than many other receivers.

  • HOME AUTOMATION

    Pair with Home Assistant and integrate with almost anything (an upcoming feature).

  • RUUVI CLOUD

    Custom-made serverless cloud backend does the heavy lifting behind the remote monitoring.

  • OPEN SOURCE

    Firmware, backend, hardware and mobile apps are all open source.

  • CUSTOMISABLE

    Advanced users can route data to their own backends using HTTP and MQTT.

  • EXTENDABLE FEATURES

    Internal expansion boards with Ruuvi Connector system are supported. Endless possibilities.

  • CONTINUOUS DEVELOPMENT

    Community powered testing and support makes the best open source software.

Subscription Plans

We continuously expand our offering and features so that you’ll continue to get more out of your sensors.

We offer “Ruuvi Pro” plan for FREE until the end of 2022. You’re always able to downgrade with no additional fees if you decide not to continue your subscription after the free period.

Free

0 €

/ month
Gateway + Cloud

Monitor live data

10 min update interval *

Share live data

Mobile app

Supports 10 sensors

Basic

2,90 €

/ month
Gateway + Cloud

Monitor live data & history

5 min update interval *

3 months history

Share live data & history

Push alerts

Web dashboard

Mobile app

Supports 10 sensors

Ultimate

Contact us

for more info
Gateway + Cloud

Unlimited


* “Ruuvi Pro” plan is FREE until the end of 2022.
* Ruuvi Gateway can send data to a 3rd party server via HTTP/MQTT, or it can be used with Home Assistant integration without monthly fees.
* Free, Basic and Pro plans are designed for non-critical uses only. While we keep the services up and functional as well as we possibly can, no 100% uptime and data retention is assured.
* Old history data on the Basic and Pro plans can be pruned. Meaning, not all data points will be stored for the full 3 months or 2 years. Exact details of the pruning algorithms are to be published.
* Subscription plans will be billed annually by default. Downgrading is always possible without additional fees.
* Ruuvi reserves the right to make changes to pricing and feature selection.

"Better range"

Previously I had problems with receiving signals from all my RuuviTags that I have at my summer cottage. Now I am able to receive data from all of them!

Jukka, beta tester
"No configuration needed"

I was surprised that no configuration was needed. I just plugged in the Ethernet cable and it started to route sensor data. Other gateways I've used have been slow and complicated to set up.

Alan, beta tester
"Gateway helps our business"

We've had serious problems with getting data from RuuviTags to our cloud in a reliable manner and we hope the Gateway will take the pain away. So far it's working great!

Tommi, beta tester

Ruuvi Gateway

Be quick!

There are many hungry birds waiting for this release. Don’t miss out, make sure to place your order now!

Ruuvi Gateways with special early bird pricing are already shipping.

We’ll be shipping in first in, first out order. Meaning, the sooner you place your order, sooner you’ll get your Gateway.

Join the Discussion

Launching a new product is always exciting!

While waiting for your Gateway to arrive, come and chat with us. Or, if you’ve got questions before you’re ready to place an order, you can reach our core team and active community members easily via these channels.

Ruuvi family is helpful and new friends are always welcome.

It's ready!

“RuuviTag has been our main product for a long time. Since its launch we’ve tirelessly enhanced the sensor by launching new features and adding new services around it. Releasing the Ruuvi Gateway is a big thing to us and Ruuvi users, it takes remote sensor monitoring with Ruuvi sensors to a whole new level. We can proudly say that we’ve created a complete professional remote measurement solution from scratch that serves the needs of both consumer and business clients around the world.”

Lauri Jämsä, Founder

Development Roadmap

Here you can find the current software development status and estimated release dates. Our whole team is working tirelessly to get all new features out the door and to offer you the best user experience as soon as possible.

Development

Status and Estimations

FEATURESTATUS
Live sensor dataDone (beta)
10-day history (on mobile app)Done (beta)
Sensor sharingDone (beta)
Email alertsDone (beta)
Store app and sensor settings to the cloudDone (beta)
Web dashboard & longer historyDone (beta)
Push alertsQ4/2021 (estimation)
More new featuresQ4/2021 ->
Bug fixesQ4/2021 ->

Questions?

Below we’ve collected some of the most frequently asked questions.

If you cannot find an answer, you can always contact us via social platforms. You can also send us an email: support@ruuvi.com / asiakaspalvelu@ruuvi.com

Frequently Asked Questions
Can I use many Gateways at the same time?

Yes you can.

For example, you can have one subscription plan, 2 Gateways in different locations and 10 Ruuvi sensors in each location within range of the Gateways.

Gateways aren’t linked to your subscription plan. This means that you can use several Gateways to cover all your sensors. Ruuvi Gateways are independent routers that continuously listen to broadcast sensor data messages sent by Ruuvi sensors.

My internet isn't always reliable. How does it affect the Gateways?

Ruuvi Gateway periodically sends most recent sensor data from nearby Ruuvi sensors to the cloud. If the cloud doesn’t respond (no connection), Gateway continues trying.

Every transmission attempt has the most recent data the Gateway has received from the sensors. This means that if data transmission has been delayed due to connectivity issues, data during the offline period will be lost.

Do sharees need subscription plans to see history and use alerts?

No. A free plan is enough.

If you have an active subscription plan and you share a sensor with a friend, he/she can access the same history data with you. Your friend can also set his/her own alert limits for the sensor.

Can I log in on multiple devices?

Yes you can.

Ruuvi cloud supports multiple simultaneous sessions. This means that you can for example stay logged in on two of your mobile phones at the same time.

Are my app and sensor settings stored in the cloud?

Yes they are.

After you log in on Ruuvi Station, your settings will be securely stored to the cloud.

When you log in on a different device, the settings are automatically restored and you don’t need to reconfigure. Included are:

  • Claimed sensors
    – Names
    – Background images
    – Offset settings
    – Alert settings
    – Sharing settings
  • App settings
Can Gateway send data to my own server?

Yes, without any monthly fees.

Ruuvi Gateway can be configured to route sensor data to any server. HTTP and MQTT protocols are supported. See documentation for more information.

When will I get my Gateway if I order it now?

We’ll ship first to those who placed their orders first. If you’re in hurry, we recommend placing your order as soon as possible.

How many sensors can one Gateway handle simultaneously?

One hundred (100).

If you have more than 100 active Ruuvi sensors, Ruuvi Gateway routes their data randomly.

This is a software limit, and if your business case requires increased numbers, please contact us.

What's included in the package?

If you pre-order now, you’ll get:

  • 1 x Ruuvi Gateway
  • 1 x Custom-made cloverleaf antenna
  • 1 x Ethernet cable
  • 1 x Power supply
  • 1 x Power cord
  • 2 x Generic mounting screws

Ruuvi Gateway uses a USB-C power supply (as seen on many common mobile phones and laptops). We ship Europlug power supplies by default.

What if I'll order more than one Gateway, do they include separate "Ruuvi Pro" plans?

We won’t charge users of the “Ruuvi Pro” subscription plans until 2023.

This means that if you pre-order three Gateways, you can use one by yourself and gift the other ones to your friends.

After 2022, you and your friends can decide if you’d like to continue on the “Ruuvi Pro” plan or downgrade to “Basic” or “Free”.

When is my payment collected?

Payments are collected during the checkout process. Please don’t combine other products with this order if you don’t wish them to be shipped with the Gateway.
